Project Overview

For a retired couple living in Matapouri, the decision to invest in solar battery storage NZ came down to three things: they are home all day, their power bills reflected it, and their coastal Northland location is no stranger to power cuts. Being at home around the clock means energy consumption is spread across the full day – heating, cooking, appliances, and all the comforts of a home that is genuinely lived in. That kind of consistent load is exactly what a well sized solar and battery system is built for.

The battery was not an afterthought here – it was central to the brief. In an area where grid outages can occur without warning, having on site solar battery storage NZ means the home keeps running when the power goes down. Lights stay on, the fridge stays cold, and daily life continues uninterrupted. Paired with a 7.04kW Suntech solar array generating 23.4kWh per day, the SolaX X1 IES battery stores surplus daytime generation and dispatches it through the evening and overnight – cutting the annual power bill from $3,480 to just $595 and delivering the kind of energy independence that genuinely matters in retirement.

The Challenge

This Matapouri homeowner was consuming around 18kWh of electricity per day – a typical load for a well used home. With electricity prices continuing to rise and a north facing roof well suited to solar generation, the goal was straightforward: reduce reliance on the grid, lock in long term savings, and do it with a system built to last. The addition of solar battery storage NZ compatible equipment meant energy generated during the day wouldn’t simply be exported at a low rate – it could be stored and used when it was needed most.

The System

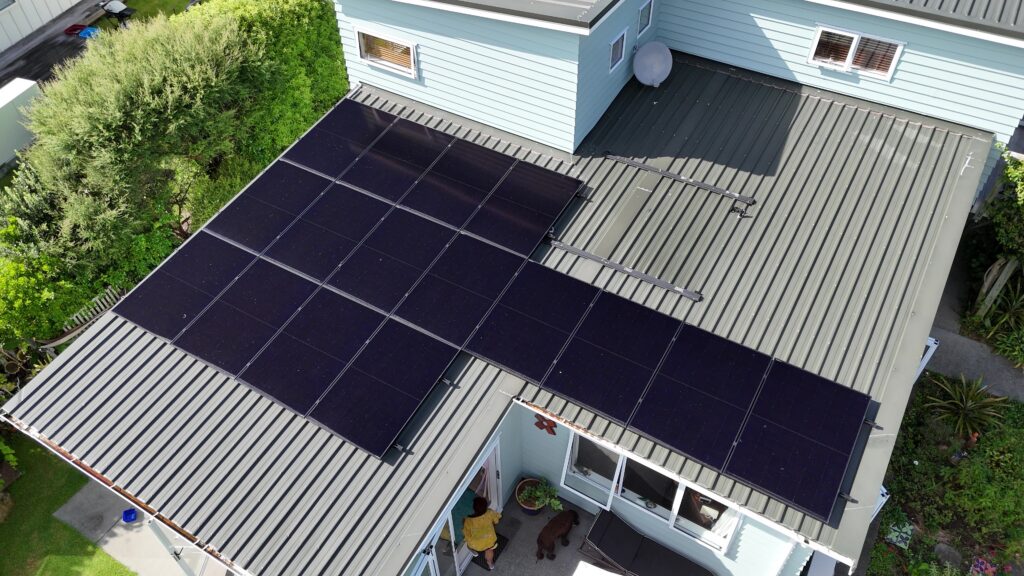

16 × Suntech STP440S All Black Panels – 7.04kW Total

Sixteen Suntech Ultra V Pro Mini 440W all black panels were selected for this solar installation NZ project. As an N type TOPCon half cell bifacial module, the Suntech panel delivers up to 22.5% efficiency with just 1% first year degradation and 0.40% annually – meaning strong performance not just at installation, but across the full 25 year product warranty period. The all black aesthetic integrates cleanly with the roofline, while the lightweight double glass construction is engineered to handle the coastal Northland environment.

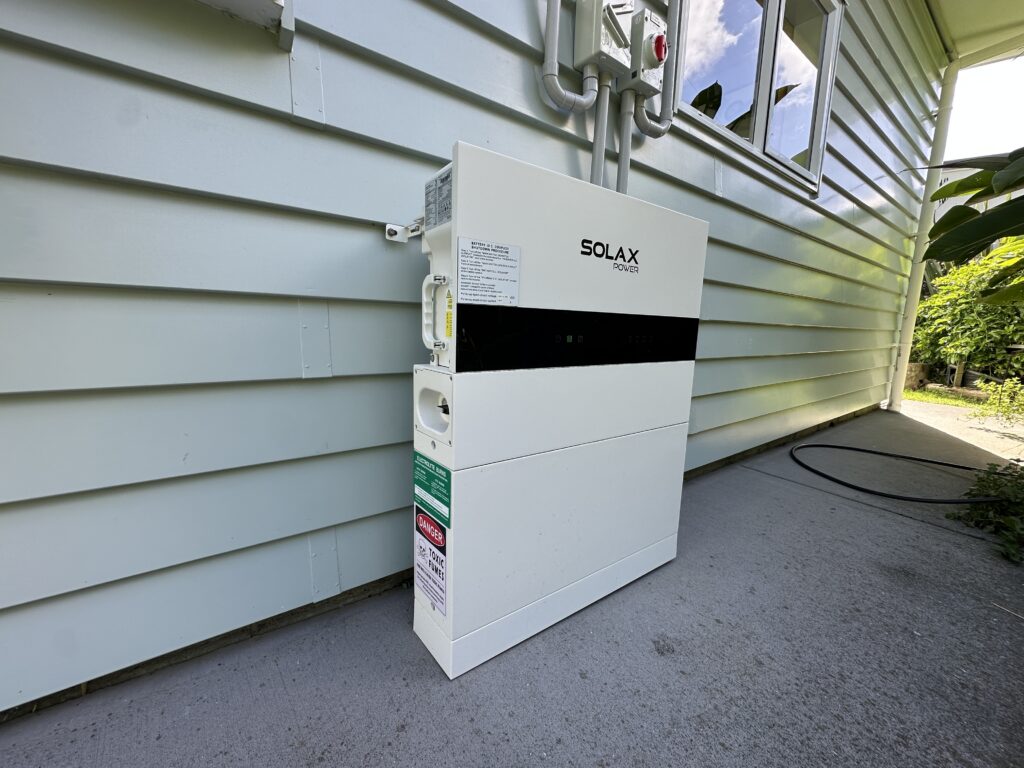

SolaX X1 IES 6K – Integrated Hybrid Inverter + Battery

The SolaX X1 IES is an all in one solar battery storage system combining a 6kW hybrid inverter with an expandable LFP battery module. The single battery module provides 5.1kWh total capacity (4.6kWh usable), with 7.1 hours of battery autonomy modelled across the year. As a battery energy storage system, it is expandable up to 20kWh if future demand grows – making it a genuinely future proof choice. The system includes 24 hour consumption monitoring, smart scheduling, and EV charger and heat pump compatibility, all backed by a 10 year battery warranty and 10 year installation warranty.

North-Facing Array – Optimised for Maximum Generation

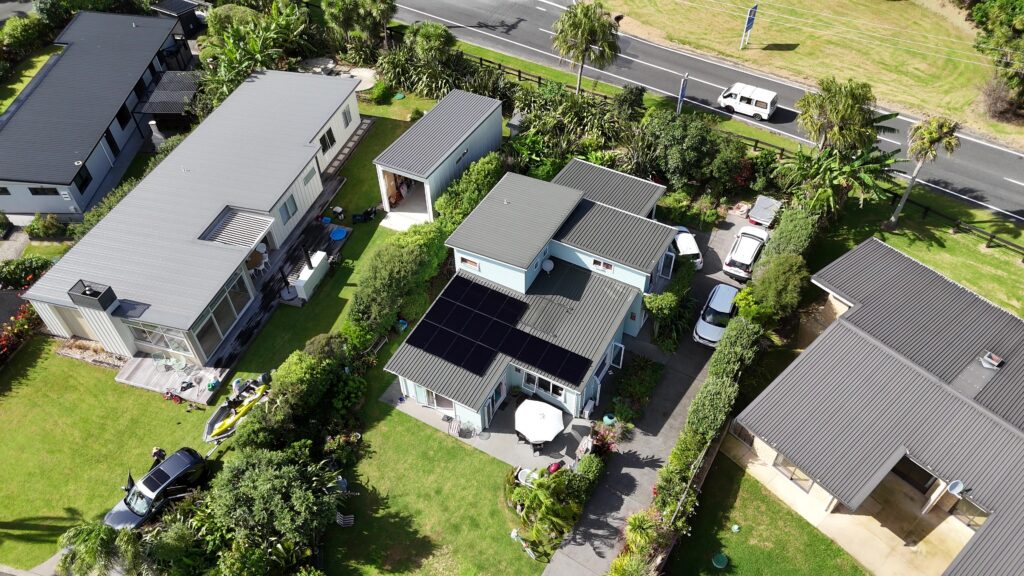

The 16 panel array is installed on a north facing roof at a 5 degree tilt – a configuration optimised to maximise solar energy capture across all seasons. With no shading derating applied and a 3% electricity tariff escalation rate factored into the modelling, the system is projected to generate 23.4kWh per day, comfortably exceeding the home’s 18kWh daily consumption and producing meaningful surplus for battery charging and grid export.

The Results

• $2,888 estimated savings in the first year
• Annual electricity bill reduced from $3,480 to $595 – an 83% reduction
• 23.4kWh of solar generated daily from 16 Suntech PV solar panels
• 5.1kWh solar battery storage NZ system providing up to 7.1 hours of battery autonomy
• 289 battery discharge cycles in year one
• 1.1 tonnes of CO2 offset per year – equivalent to 432 trees grown for 10 years
• Payback period of 6 years and 9 months on a $21,027 total investment
• System warranted to perform for 25 years – 25 year panel warranty, 10 year battery and installation warranty

Generate more than you use. Store what you don’t. Pay almost nothing for power.

Frequently Asked Questions

What is solar battery storage and why does it matter in NZ?

Solar battery storage NZ systems allow you to store energy generated by your solar panels during the day and use it at night or during cloudy periods – rather than exporting it to the grid at a low rate. In New Zealand, where export credits are typically around 10-12c/kWh but import rates are 35c/kWh or more, every unit of self consumed solar is worth significantly more than exported surplus. A home battery bridges that gap, improving the return on your solar investment and reducing grid reliance year round.

How much battery storage does a typical home need?

It depends on your evening and overnight consumption. For a home using 18kWh per day, a 5.1kWh battery will cover a significant portion of evening load – as shown in this system’s 7.1 hour modelled autonomy. Homes with higher evening demand, EV charging needs, or a desire for full backup capability may benefit from larger storage. The SolaX IES battery energy storage system used here is expandable up to 20kWh without replacing the inverter, so capacity can grow with your needs.

Is solar viable on the Northland coast?

Yes. Northland receives some of New Zealand’s highest solar radiation, making it one of the better regions for solar installation NZ wide. Coastal environments do require consideration – salt mist resistant components matter, and the Suntech panels specified here carry IEC 61701 salt mist certification for exactly this reason. The SolaX inverter is rated IP66 for outdoor installation, ensuring the full system is engineered for the environment it operates in.

Can I add more battery storage later without replacing the whole system?

Yes. The SolaX X1 IES is designed as a modular home battery platform. Additional battery modules can be added to bring total capacity from 5.1kWh up to 20.4kWh – without replacing the inverter or any other core equipment. This makes it a practical choice if you plan to add EV charging, a hot water heat pump, or simply want more overnight autonomy down the track. Future Energy can assess your options and size any expansion to match your actual usage.
