| 22 Total Panels | 2.64kW Added Generation | $3,549 First Year Savings | 31.9 kWh Daily Production |
Project Overview

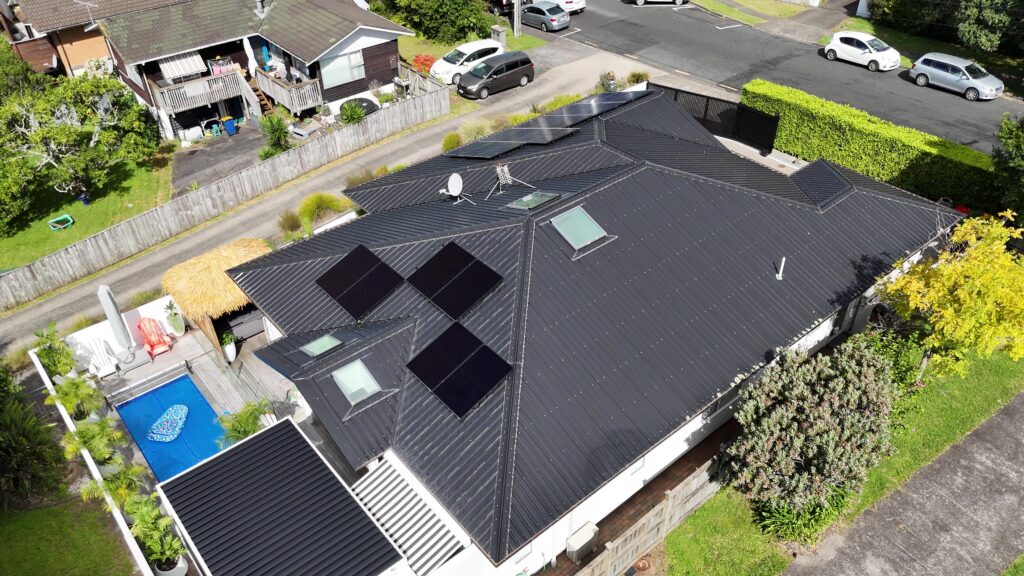

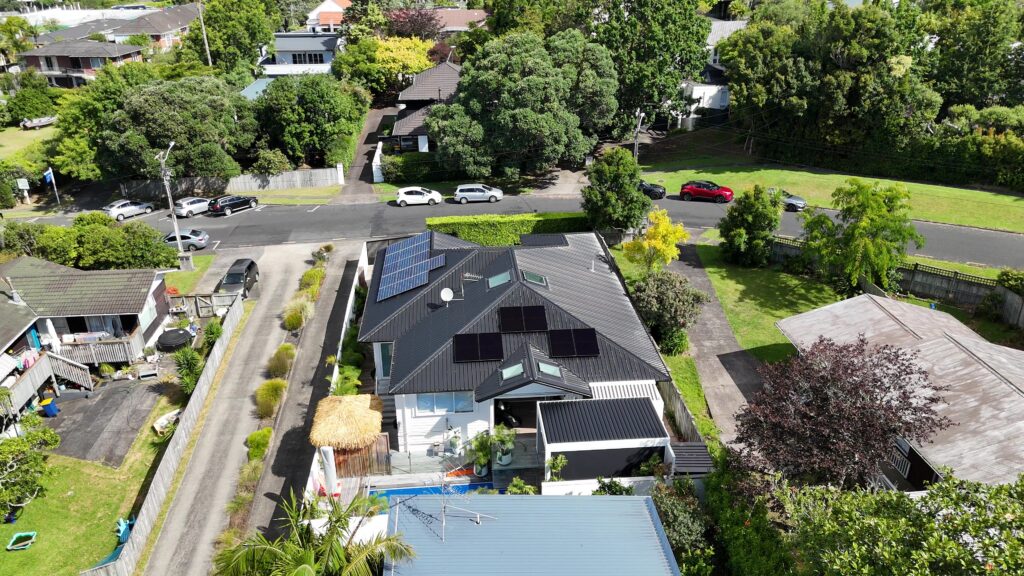

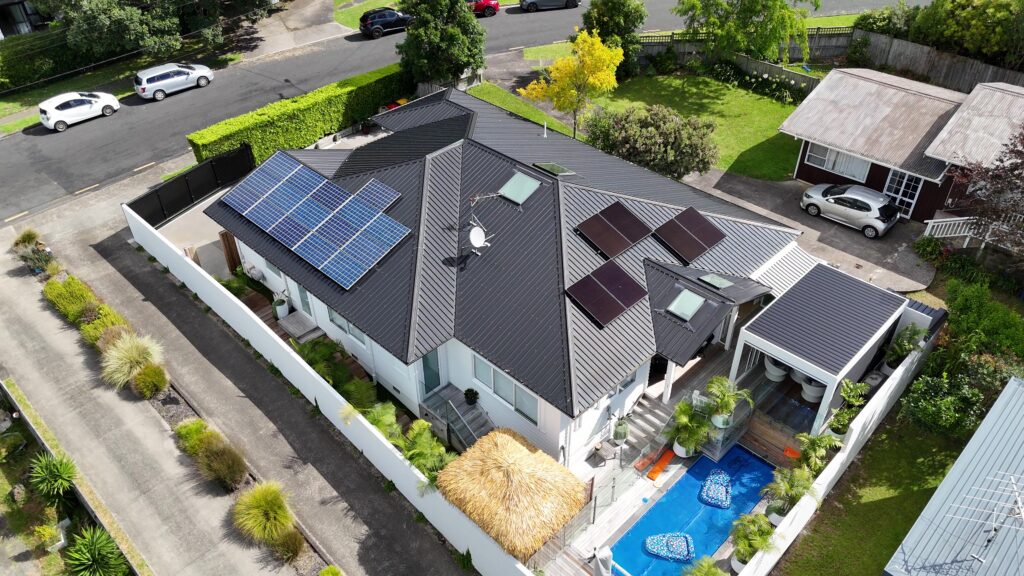

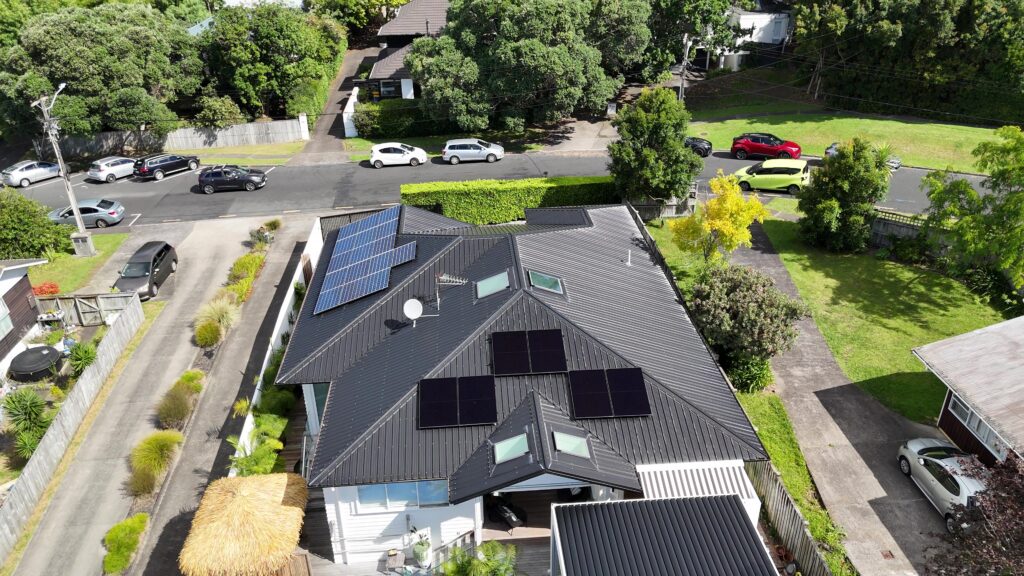

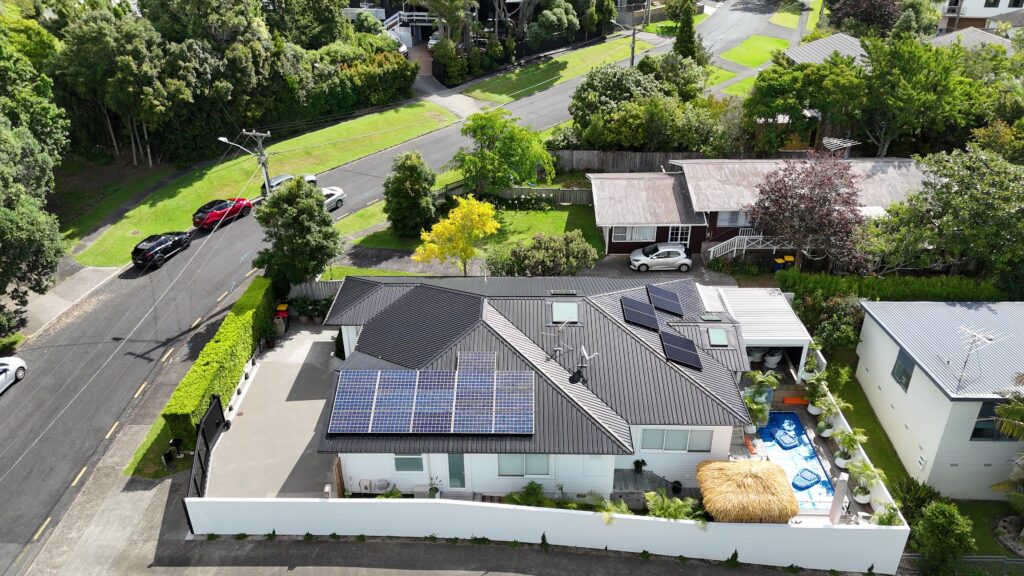

Residential solar panels don’t have to be an all or nothing investment. This Mairangi Bay homeowner already had 16 panels on the roof – but with energy use growing, the existing system wasn’t keeping up. Future Energy expanded the setup by 6 panels, adding 2.64kW of generation and lifting daily output to 31.9 kWh across 22 residential solar panels total.
The Challenge
This Auckland homeowner had already made the move to solar – a 16 panel system installed by another provider was on the roof and performing. But household energy consumption had increased since installation, and the system simply wasn’t generating enough to keep up. Rather than start from scratch, they came to Future Energy to explore whether their existing residential solar panels could be expanded cleanly alongside what was already there.
The Solution
6 × Longi Hi-MO X6 440W All Black Panels
Future Energy designed an expansion that worked with the existing setup rather than replacing it. Six Longi Hi MO X6 440W all black panels were added alongside the original 16 panel Trina array – bringing the total to 22 residential solar panels and adding 2.64kW of generation capacity. With 22.5% module efficiency and a 25 year power warranty, the Longi panels are built to perform reliably for the life of the system.
Seamless Integration with the Existing System
Before any panels went on the roof, the existing setup was fully assessed – inverter capacity, roof orientation, shading, and how the new panels would sit alongside the existing array. The SolaX X1 IES 8kW inverter had sufficient headroom to absorb the additional generation without requiring replacement, keeping the solar installation cost effective and the project straightforward. This is the kind of assessment Future Energy carries out on every solar installation in NZ before any work begins.
The Results
- $3,549 estimated savings in the first year
- 31.9 kWh of solar generated daily across 22 residential solar panels
- $1,806 per year in solar export credits by selling surplus energy back to the grid
- 2.64kW of additional generation added with just 6 panels
- Clean, seamless finish – new panels matched to the existing Trina array
- No inverter replacement required – existing SolaX X1 IES 8kW had sufficient capacity
- 25-year performance backed by Longi’s industry leading warranty
Same roof. More power. A finish that looks like it was always meant to be there.
Frequently Asked Questions
Do I have to use the same installer who put in my original panels?
No. Future Energy works on systems installed by other providers all the time. We assess your existing setup, check what the inverter can handle, and design an expansion that integrates properly with what is already there. You are not locked in to your original installer – and expanding residential solar panels with a new provider is a straightforward process.
Will my existing inverter be able to handle more panels?
It depends on the inverter model and how close it is to its rated capacity. In this case, the SolaX X1 IES 8kW had enough headroom to absorb the additional 2.64kW without any replacement needed. We assess this as part of every solar installation in NZ before any work begins – so there are no surprises on the day.
Is it more cost effective to expand an existing system or install a new one?
In most cases, expanding is significantly more cost effective – particularly when the existing inverter has capacity remaining. You avoid the cost of replacing equipment that is still working well, and only pay for what you are adding. Expanding residential solar panels in NZ makes sense when the original system is undersized but otherwise sound. A full new system makes more sense when the original is aged or incompatible with what you want to add.
Thinking about upgrading your solar setup? Future Energy specialises in residential solar panel installations and expansions across New Zealand. Whether you’re adding to an existing system or starting fresh, talk to us about what’s possible.
